LokSeam®

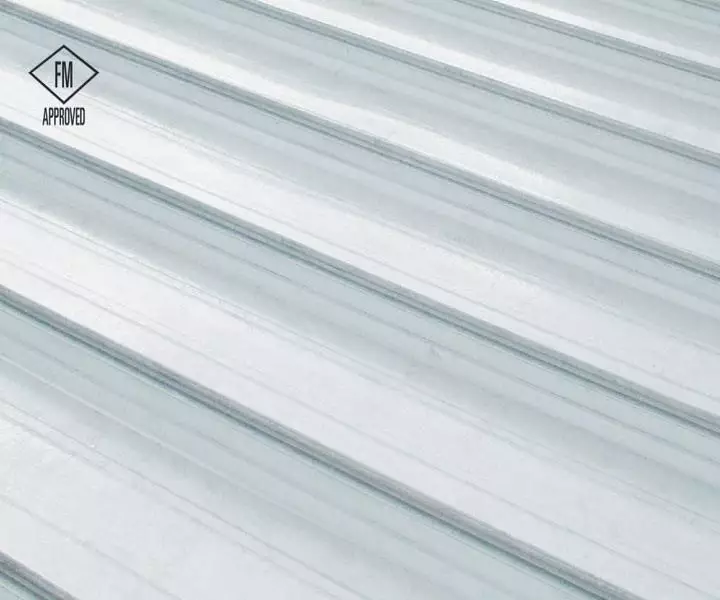

LokSeam, which achieved FM Approved certificate, is a standing seam panel float on a system of sliding clips that prevent damage from thermal expansion and contraction.

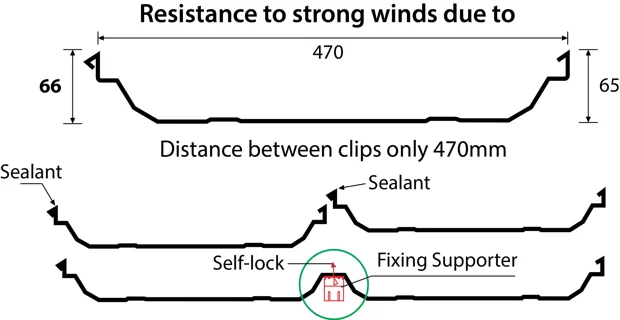

It’s standing seam design also eliminates 80% of the through fasteners found in normal systems to achieve greater weather resistance. LokSeam panels have a width coverage of 470mm with 66mm high ribs including the seam and used for a roof covering system for new or retrofit construction. The minimum roof slope of the LokSeam roof panels is 3%. All panels are seamed together, creating 360-degree double lock seams that have machine-applied butyl sealant to ensure the weather-tight and leak-proof joints.
Product Features
- Full single piece roof length up to 120m without end-lap joints.
- Resistance to strong wind up to 300km/hr
- Heat expansion does not transfer to purlin: Extra safety factor
- No air leak or water leak to save energy and operating costs.
Basic use
LokSeam® is used for a roof covering system for new or retrofit construction.
Installation
LokSeam® panels are joined at the side-lap with an interlocking 25mm-high seam standing above the major rib. Panel side-laps are seamed by a special seaming machine. All panels are seamed together, creating 360-degree double lock seams that have machine-applied butyl sealant to ensure the weather-tight and leak-proof joints.
